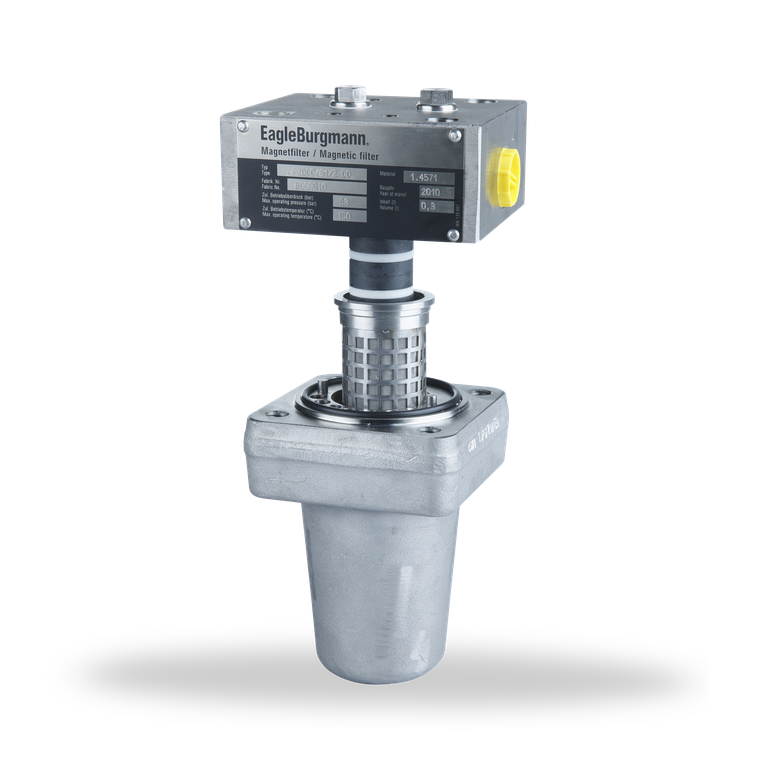

MAF2001 Magnetic filter
MAF2001 Magnetic filter

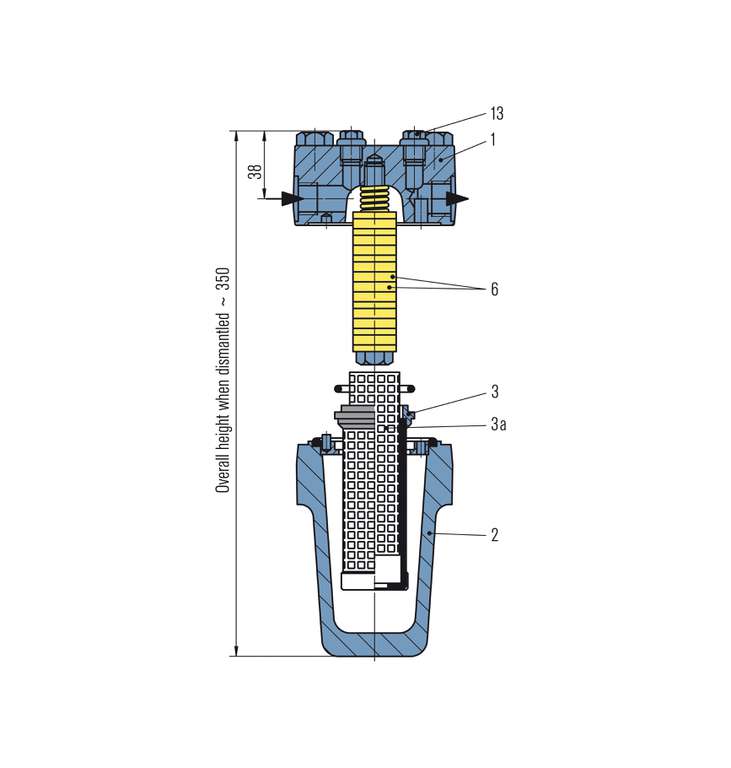

| Item | Description |
| 1 | Filter cover |
| 2 | Filter barrel |
| 3 | Element insert |
| 3a | Internal mesh |
| 6 | Ring magnet |
| 13 | Venting screw |
MAF2001 Magnetic filter
Features
Magnetic filters of the MAF2001 range are inline filters for installation inside pipelines. The combination of magnetic rod and filter element guarantees a high level of efficiency. Magnetic filters are used in seal supply systems and any other such systems in which a liquid has to be cleaned of magnetic and non-magnetic impurities up to a certain size.
Advantages
- Combination device: magnetic filter and filter element
- Internal mesh to protect the filter element for reverse currents
- Venting screws in the filter inlet and outlet can be used as connections for maintenance or differential pressure indicator
- Housing can be dismantled: simple maintenance and cleaning
- Two types of contamination indicator are available as accessories: visual monitoring and/or in combination with an electric contact
- All pressure-loaded parts are forged components
Recommended applications
- Petrochemical industry
- Chemical industry
- Power plant technology
- Refining technology
- Oil and gas industry
Functional description
The magnetic rod is positioned in the filter in such a way that it catches magnetic particles flowing past in the medium on all sides. Partial coarse filtration is provided by the incorporated filter element.
Pressure loss:
10 mbar@ 10 l/min (0.15 psi @ 2.5 GPM)
55 mbar @ 25 l/min (0.8 psi @ 6.5 GPM)
Pressure loss:
10 mbar@ 10 l/min (0.15 psi @ 2.5 GPM)
55 mbar @ 25 l/min (0.8 psi @ 6.5 GPM)
Product variants
| Designation | Process connections | Allowable pressure | Allowable temperature1) | Filter grade | Weight (approx.) | Housing, filter head | Filter insert, filter element2) | Gasket | |
|---|---|---|---|---|---|---|---|---|---|
| MAF2001/G1/2-00 | G 1/2" | 60 bar (870 PSI) |
150 °C (302 °F) |
50 µm | 7.8 kg (17.2 lb) |
1.4571 | 1.4301 | Viton® | T2 |
| MAF2001/G3/4-00 | G 3/4" | 60 bar (870 PSI) |
150 °C (302 °F) |
50 µm | 7.8 kg (17.2 lb) |
1.4571 | 1.4301 | Viton® | T2 |
| MAF2001/G1-00 | G 1" | 60 bar (870 PSI) |
150 °C (302 °F) |
50 µm | 7.8 kg (17.2 lb) |
1.4571 | 1.4301 | Viton® | T2 |
| MAF2001/NPT1/2"-00 | 1/2 NPT | 60 bar (870 PSI) |
150 °C (302 °F) |
50 µm | 7.8 kg (17.2 lb) |
1.4571 | 1.4301 | Viton® | T2 |
| MAF2001/NPT3/4"-00 | 3/4 NPT | 60 bar (870 PSI) |
150 °C (302 °F) |
50 µm | 7.8 kg (17.2 lb) |
1.4571 | 1.4301 | Viton® | T2 |
| MAF2001/NPT1"-00 | 1 NPT | 60 bar (870 PSI) |
150 °C (302 °F) |
50 µm | 7.8 kg (17.2 lb) |
1.4571 | 1.4301 | Viton® | T2 |
1) Higher values on request.
2) Other materials on request.
Similar products
MAA Magnetic separator
Magnetic separators of the MAA range consist of a pressure casing with integrated magnetic rod. Magnetic separators are used in seal supply systems and any other such systems in which a liquid has to be cleaned of magnetic impurities.
MAF203 Magnetic filter
Magnetic filters of the MAF203 range are inline filters for installation inside pipelines. The combination of magnetic rod and filter element guarantees a high level of efficiency. Magnetic filters are used in seal supply systems and any other such systems in which a liquid has to be cleaned of magnetic and non-magnetic impurities up to a certain size.

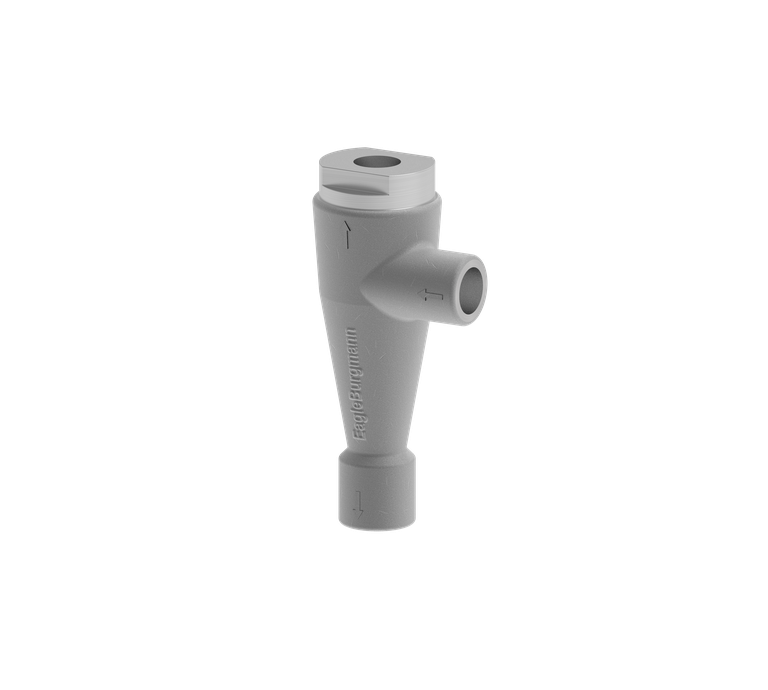

ZY Cyclone separators
