Combine-X
expansion joints

Combine-X <br/>
expansion joints

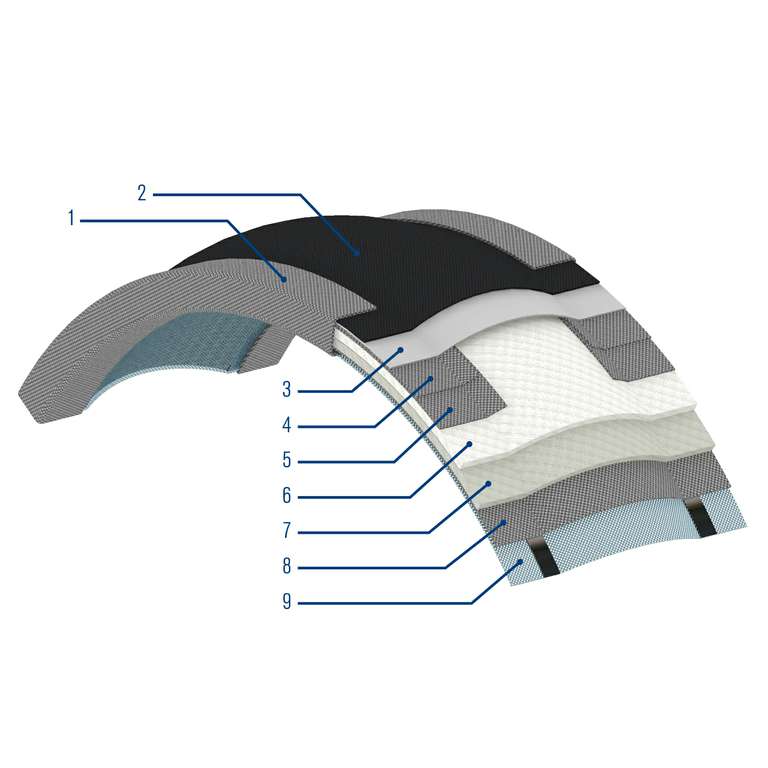

Item Description
1 Flange reinforcement
2 Pressure carrying layer
3 Gas seal layer
4, 5 Insulation strips
6, 7 Insulation layer
8 Support layer
9 Mechanical reinforcement

Combine-X
expansion joints

Features

  • Multi layer design
  • Compensates for movements in several directions simultaneously
  • Excellent form stability
  • Can be delivered as fabric only or as preassembled unit
  • Custom made to fit actual working conditions
  • Specifically designed for gas turbine systems

Advantages

  • Highly flexible
  • High chemical resistance
  • High flutter resistance
  • Reduce heat loss
  • Low reaction forces
  • Good resistance against abrasion
  • Suitable for high temperature applications

Operating range

Temperature:
-35 °C … +650 °C (-31 °F ... +1,202 °F)
Pressure:
-0.14 bar … 0.07 bar (-2.03 PSI ... 1.02 PSI)
Maximal axial movements: … 160 mm (6 1/2”)
Maximal lateral movements: … 80 mm (3”)

Standards and approvals

Documentation:
- EN 10204-2.2 certificate
- Safety Data Sheets (SDS) for individual materials

Functional description

Combine-X expansion joints safely absorb thermal expansion and misalignments of pipe and duct systems in dry, high temperature and high velocity area. Combine-X products compensate for movements in multiple directions simultaneously.



Product variants

Pre-assembled units

Pre-assembled units

Pre-assembled expansion joint units consist of:

- Fabric expansion joint
- Metal frames / inner sleeves
- Bolster (internal insulation)
- Gaskets (optional)
- Fasteners

Frame material:

- Carbon steel
- Stainless steel
- Heat resistant steel

Pre-assembled expansion joint units can be supplied with surface treatment that is corrosion resistant (standard) and resistant to high temperatures. EagleBurgmann offers any RAL color code for the units. Units can be delivered with seaworthy packing or standard packing for road transportation.

Similar products

Acouseal expansion joint

  • Single layer design
  • Designed for acoustic demanding environment in GT inlets
  • Absorbs movements and vibrations in multiple directions
  • 100 % gas tight connection
  • Excellent and proven sound reducing properties

Flexgen expansion joints

  • Multi layer design (Flexgen 2002: single layer construction)
  • Compensates for movements in several directions simultaneously
  • Can be delivered as fabric only or as preassembled unit
  • For dry condition
  • Custom made to fit actual working conditions

Fluachem expansion joints

  • Single layer design
  • Compensates for movements in several directions simultaneously
  • Can be delivered as fabric only or as preassembled drop in unit
  • For dry and wet condition
  • Custom made to fit actual working conditions
