Engineered seals

HR HR
  • Single seal
  • Balanced
  • Independent of direction of rotation
  • Multiple springs stationary
  • Seat rotating
  • Seat arranged directly behind the impeller
  • Spring protection sleeve
  • Variant with cylindrical spring and acc. EN 12756 (HRZ1) available
  • Variant as cartridge with/without guide sleeve for application with/without quench (HR2, HR3)
  • Dual seal as cartridge unit (HRKS-D) available
HRC...N HRC...N
  • Cartridge
  • Balanced
  • Independent of direction of rotation
  • Stationary multiple springs
  • Spring protection sleeve
  • Variant for operation with pressureless quench available (HRC2000N)
  • Dual seal with and without pumping screw (HRC3300NF, HRC3300N) available
LP-D LP-D
  • Integrated seal for Sulzer A pumps
  • Dual seal, balanced
  • Semi cartridge unit
  • Independent of direction of rotation
  • Double pressure balanced
  • Internal barrier fluid circulation
  • Static springs on both sides
  • No dynamic O-Ring on shaft
  • Rugged design
  • Shrink-fitted seal faces
  • Seal faces have a large clearance to the shaft
  • Wear part cost minimized
  • Optimized design for Non-Flow use
LP-S LP-S
  • Integrated seal for Sulzer A pumps
  • Single + Plan 11 flush
  • Semi cartridge unit
  • Balanced
  • Independent of direction of rotation
  • Static springs
  • No dynamic O-Ring on shaft
  • Rugged design
  • Shrink-fitted seal faces
  • Seal faces have a large clearance to the shaft
  • Wear part cost minimized
SH(V) SH(V)
  • Cartridge design
  • Single seal
  • Balanced
  • Multiple springs
  • Stationary spring loaded unit
  • Shrink-fitted seal face
SHF / SHP SHF / SHP
  • Cartridge design
  • Single seal
  • Balanced
  • Multiple springs
  • Dependent of direction of rotation
  • Integrated pumping device
  • Stationary spring loaded unit
  • Shrink-fitted seal face
SHPV / SHFV SHPV / SHFV
  • Cartridge design
  • Single seal
  • Balanced
  • Dependent of direction of rotation
  • Integrated pumping device
  • Stationary spring loaded unit
  • Multiple springs
  • Shrink-fitted seal face
SAF(V) / SAP(V) SAF(V) / SAP(V)
  • Cartridge design
  • Single seal
  • Balanced
  • Dependent on direction of rotation
  • Integrated pumping device
  • Stationary spring loaded unit
  • Inserted seal face
  • Rotating carbon seat

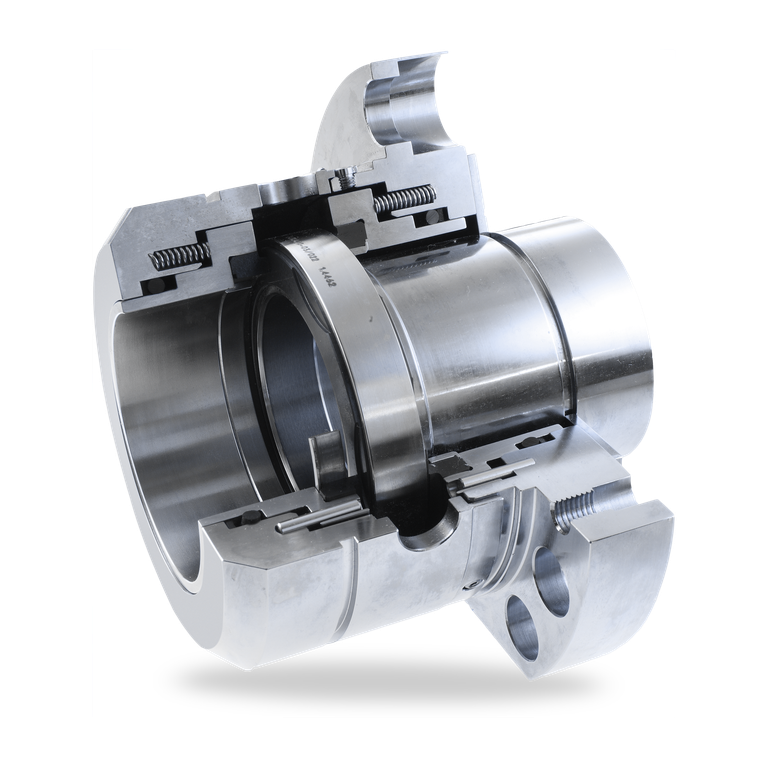

SHF(V)-D / SHP(V)-D SHF(V)-D / SHP(V)-D
  • Cartridge design
  • Dual seal
  • Balanced
  • Integrated pumping device
  • Stationary spring loaded unit
  • Multiple springs arrangement
  • Shrink-fitted seal face
  • One rugged seat
DF-SA DiamondFace DF-SA DiamondFace
  • Cartridge design
  • Single seal
  • Balanced
  • Integrated pumping device
  • Stationary spring loaded unit
  • Inserted seal ring
  • Rotating mating ring
    (DiamondFace coated)
DF-(P)DGS6
DiamondFace DF-(P)DGS6
DiamondFace
  • DiamondFace bonded primary seal faces
  • Safe cupped retainer for rotating ring
  • Fully operational in both liquid and gas phases
  • Bi-directional
  • Ready-to-fit cartridge unit
  • Single, double, tandem and tandem seal with intermediate labyrinth arrangement available
SHI300 SHI300
  • Robust seal design - suitable for demanding light hydrocarbon applications
  • Compact cartridge seal for small seal chambers
  • Single unpressurized seal with a high pressure-non contacting containment seal
  • Stationary spring loaded unit
  • Balanced primary seal faces in materials with high thermal conductivity and strength
  • Multi-point injection of the flush fluid optional
  • Seal faces can be equipped with lubrication enhancing grooves and/or DiamondFace technology
SHI366 SHI366
  • Robust seal design – especially for demanding crude oil applications
  • Compact cartridge seal for small seal chambers
  • Single unpressurized seal with containment high-pressure throttle design
  • Stationary spring loaded unit
  • Balanced seal faces in materials with high thermal conductivity and strength
  • Inserted seal face
  • Multi-point injection of the flush fluid optional
  • Seal faces can be equipped with lubrication enhancing hydropads and/or DiamondFace technology
