Fluachem
expansion joints

Fluachem <br/>
expansion joints For a larger view, please mouseover the image.
For a larger view, please mouseover the image.

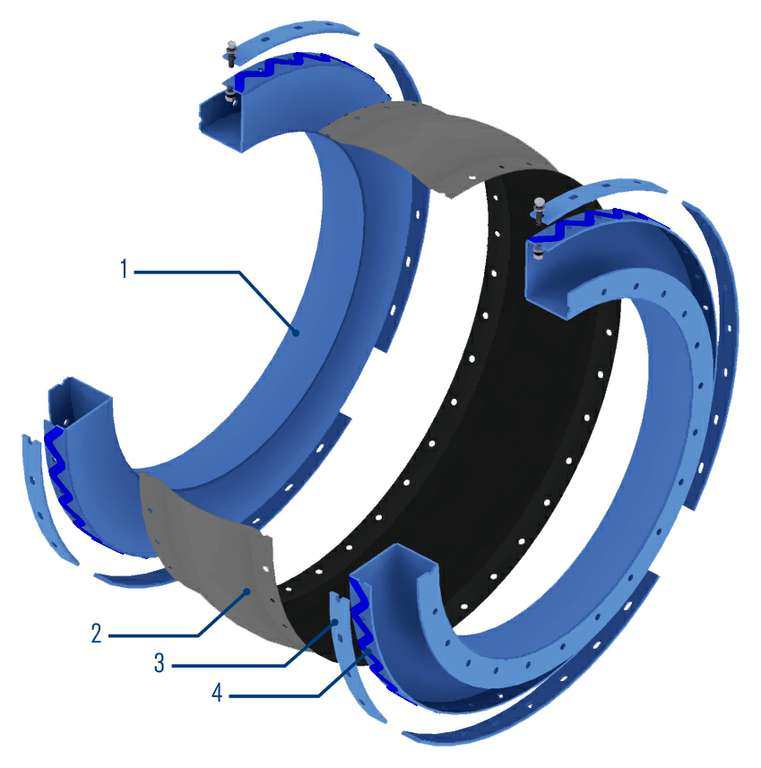

Item Description
1 Frames
2 Expansion joint
3 Clamp bar
4 Gasket
  • Single layer design
  • Compensates for movements in several directions simultaneously
  • Can be delivered as fabric only or as preassembled drop in unit
  • For dry and wet condition
  • Custom made to fit actual working conditions
  • Highly flexible
  • Excellent chemical resistance
  • Minimal reaction forces
  • Excellent abrasion resistance
    (Depending on material selection)
  • 100% gas tightness
Temperature: -35 °C … +425 °C (-31 °F ... +797 °F)
Pressure: -0.35 bar … 0.35 bar (-5 PSI ... 5 PSI)
Maximal axial movements: … 200 mm (8”)
Maximal lateral movements: … 40 mm (1 1/2”)
Documentation:
- EN 10204-2.2 certificate
- Safety Data Sheets (SDS) for individual materials
  • Process industry
  • Oil and gas industry
  • Refining technology
  • Petrochemical industry
  • Chemical industry
  • Pharmaceutical industry
  • Power plant technology
  • Sugar industry
  • Metal production and processing
  • FGD
  • Flue gas duct systems
  • Conventional boilers
  • Condensers
  • Filtration / precipitators
  • Scrubbers / absorbers
  • Chemical process lines
  • Stack connections

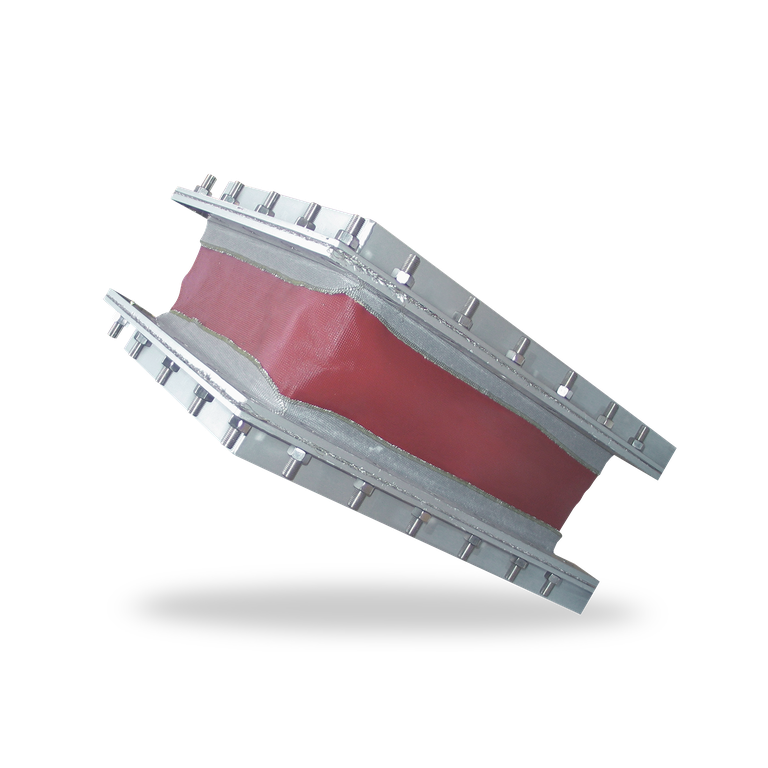

Fluachem expansion joints safely absorb thermal expansion, vibrations and misalignments in pipe and duct systems in chemical aggressive areas. Fluachem products compensate for movements in multiple directions simultaneously.
