Espey WD500
Espey WD500

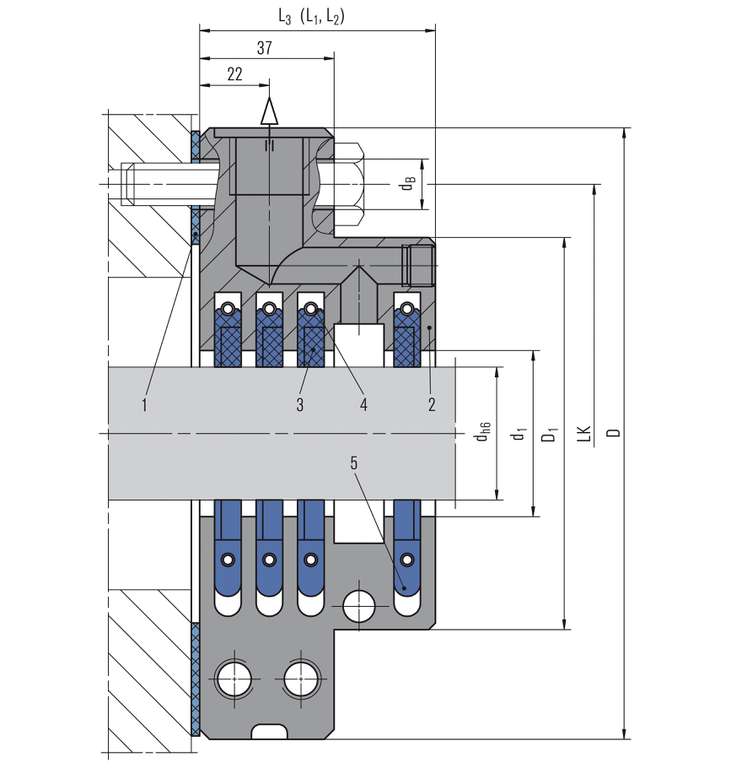

| Item | Description |
| 1 | Flat seal |
| 2 | Housing, 2-piece |
| 3 | Seal ring |
| 4 | Tension spring |
| 5 | Detent |
Espey WD500
Features
- Multi-part seal rings, overlapped mortised with gas tight Joints (adjusting)
- Split housing design
- Lowest possible operation gap - lowest leakage
- Dry-running
- Self-adjusting seal rings
- Seal rings bear radial shaft movements
- Compensates axial shaft movements
- Short axial installation length
- No sealing components mounted on the shaft and hence no additional shaft vibrations
Advantages
- Easy installation by split housing design (shaft removal not required)
- Long-term operation time
- Maintainability
- Segmented seal rings for easy replacement
Materials
Seal ring: Carbon, PTFE compound
Housing: 1.4021, 1.4571, Hastelloy®, Titanium, Inconel®, others
Tension spring / detent: 1.4571, Hastelloy®, Titanium, Inconel®
Housing: 1.4021, 1.4571, Hastelloy®, Titanium, Inconel®, others
Tension spring / detent: 1.4571, Hastelloy®, Titanium, Inconel®
Standards and approvals
- FDA
Recommended applications
- Chemical industry
- Waste incineration and removal industry
- Pulp and paper industry
- Lime, cement and gypsum industry
- Mining industry
- Water and waste water technology
- Gases
- Fumes and exhaust, solids containing, flammabale (Atex), acid containing and toxic gases
- (Solids containing) steams / liquid mist
- Oil mist / penetrating oil
- Water
- Medium-sized and large fans / blowers
- Bearing seals (gear box, motors)
- Steam turbines
- Mixers, agitators, dryers
- Mills (ball, hammer, beater mills)
- Centrifuges
Product variants

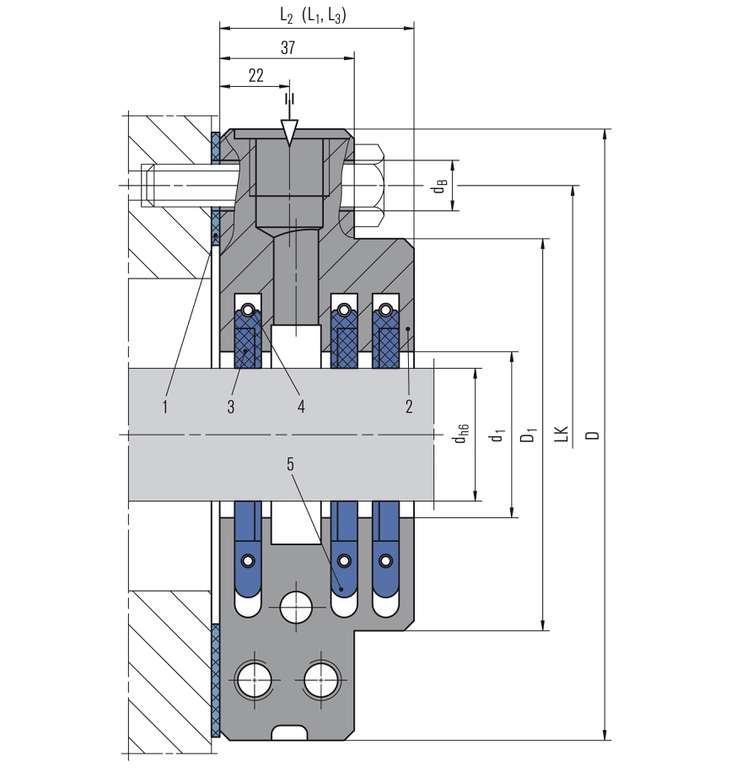

Espey WD500-WDS
with barrier gas port (for e.g. toxic and solids containing gases).
with barrier gas port (for e.g. toxic and solids containing gases).
Espey WD500-WDA
for applications involving condensate formation to enable directed throwing off to the outside of the housing (not for solids containing gases).
for applications involving condensate formation to enable directed throwing off to the outside of the housing (not for solids containing gases).
Espey WD500-WDK
with short design (for clean media, not for solids containing gases).
with short design (for clean media, not for solids containing gases).
Espey WD500 Special
as blast furnace seal
as blast furnace seal
